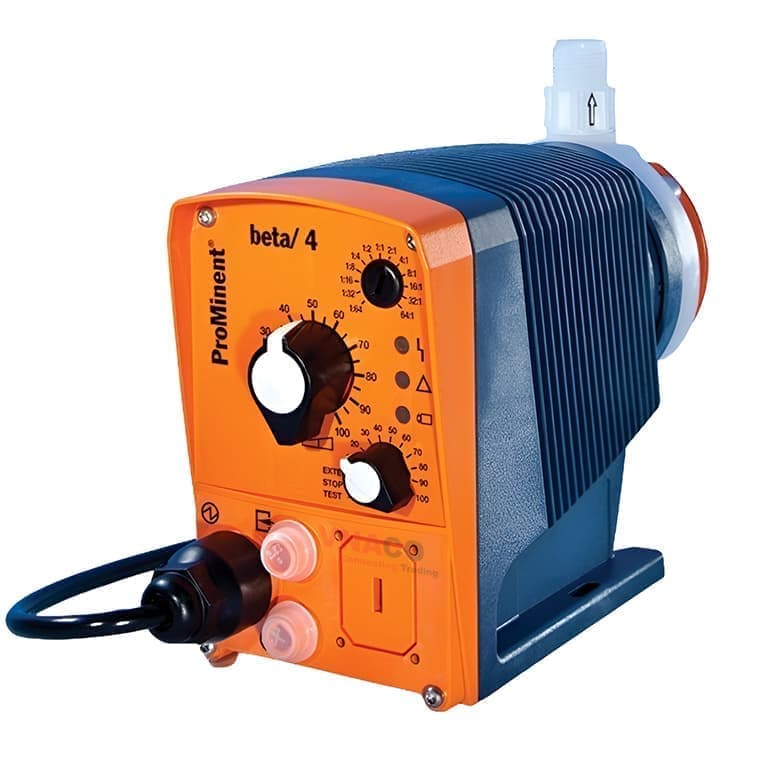

Solenoid Driven Metering Pump Beta from ProMinent

Solenoid Driven Metering Pump Beta from ProMinent

Solenoid Driven Metering Pump Beta from ProMinent equipped with all the features and properties to guarantee superior process management. Capacity range 0.74 – 32 l/h, 25 – 2 bar.

All-purpose solenoid metering pump for metering liquid media in water treatment and chemical processes: Solenoid driven metering pump Beta. Cost-effective, overload-proof, adaptable to existing signal transducers.

A range of different pump types and material combinations are available for virtually all metering applications. The virtually wear-free solenoid drive guarantees an exceptionally long service life even under maximum load.

Solenoid Driven Metering Pump Beta from ProMinent

Your benefits

• Simple adjustment of metering capacity via stroke rate and stroke length
• Adaptation to existing signal transducers by external control via potential-free contacts with pulse stepup
  and step-down
• Suitable for use with almost all liquid chemicals thanks to the available material combinations: PP, PVDF, clear acrylic, PTFE and stainless steel
• Self-bleeding dosing head design in clear acrylic/PVC and PP
• Virtually wear-free solenoid drive: economical and overload-proof
• Economical operation with up to 50% energy-savings, thanks to higher pump efficiency
• Everything in sight and under control: 3 LED display for operating, warning and error messages

Technical details Solenoid Driven Metering Pump Beta

• External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal
  transducers of 64:1 to 1:64
• Stroke rate adjustment in 10% steps of 10 – 100% corresponds to 18 – 180 strokes/minute
• Continuous stroke length adjustment between 0 – 100% (recommended 30 – 100 %)
• Connector for 2-stage level switch
• Wide-ranging electrical connection: 100 – 230 V, 50/60 Hz
• Optional relay module, can also be easily and reliably retrofitted
• Design for low voltage 12-24 V DC

Field of application

• Metering liquid media in water treatment and chemical processes

Remarks:

• Beta b metering pumps with dosing heads for higher-viscosity media have a 10-20 % lower capacity and are not self-priming. G 3/4-DN 10 connector with d 16-DN 10 hose nozzle.
• * The given performance data constitutes guaranteed minimum values, calculated using water as the
  medium at room temperature.
• ** Suction lift with a filled dosing head and filled suction line, with a self-bleeding dosing head with air in
  the suction line.
• *** Pressure-reduced pump types are available in the pressure ratings 4, 7 and 10 bar for special applications, for example in the swimming pool sector. More detailed information is available upon
  request.
• **** With stainless steel design 6 mm connector width.
• All data refers to water at 20 °C.
